Omni XE Safety Door Setting

For Lightburn

NOTE:

If your machine displays a Safety Door Not Closed message but your model does not have a safety door, or if you have purchased a safety enclosure, this guide will help you resolve the issue.

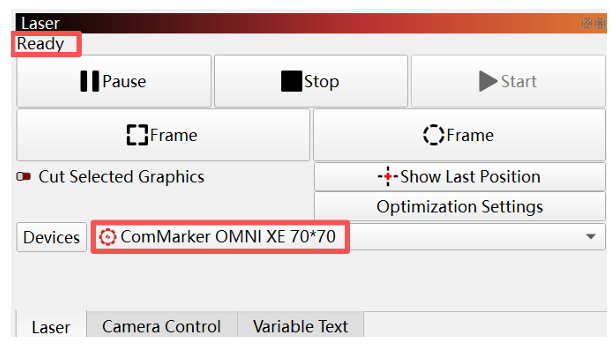

1. Turn on Lightburn and make sure the machine is connected, and the laser status is "Ready".

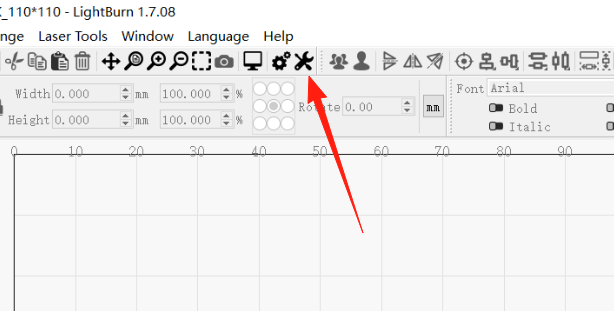

2. Click the device setting icon

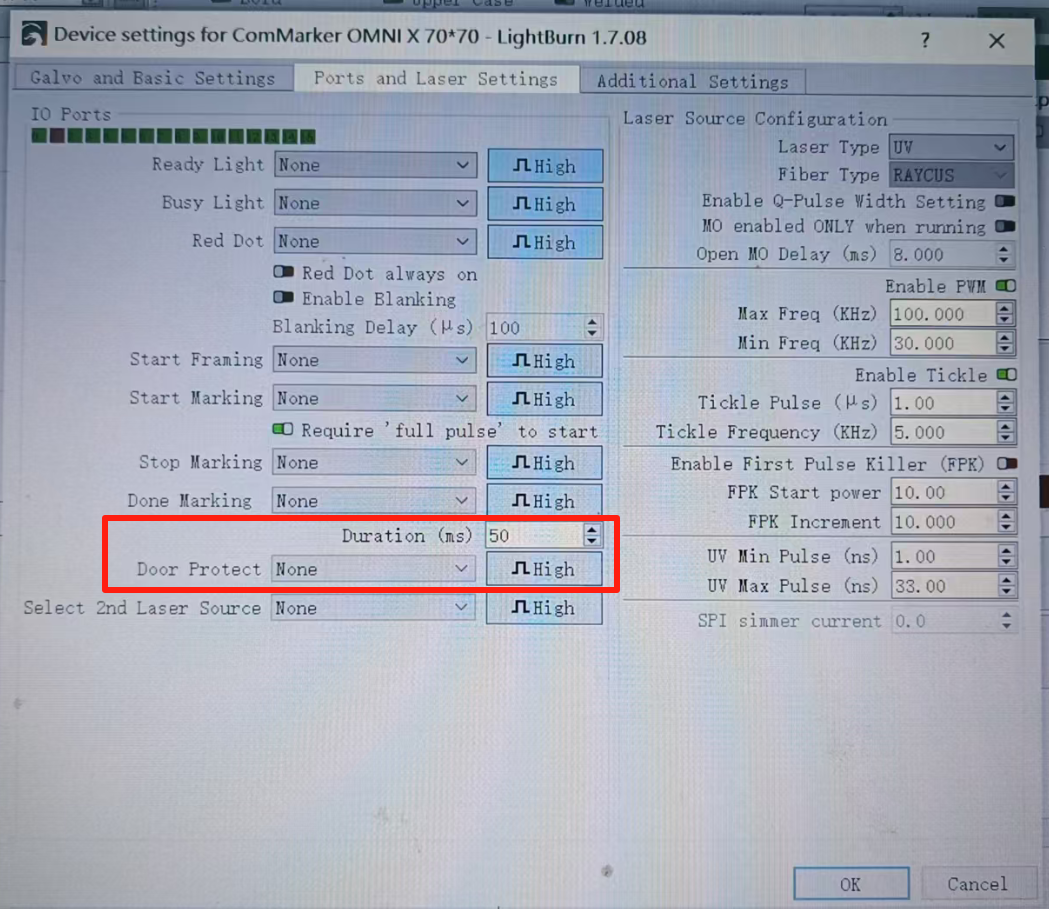

3. In the pop-up window.

    If you want to activate the safety door, change the Door Protect into "15".

    If you want to shut down the safety door function, change the Door Protect into "None".

For ComMarker Studio

1. Turn on ComMarker Studio and make sure the laser is connected.

2. Turn on or off the Door Sensor.
