B4 MOPA Parameters for marking a photo

Note:

The driver installation was unsuccessful?

*The following parameters are just suggestions for 20w machine engraving stainless steel. The results may vary to the size of the file, materials, focal length etc.

*The parameters may need to be changed for machine of different power or on other materials.

*Please open the software in the file "Software for engraving photos" before everything.

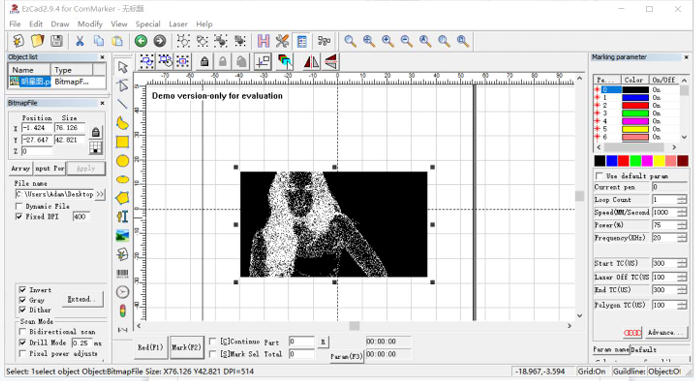

1. Input the parameters as below, which is which is for B4 20W with marking area 110x110mm on stainless steel.

Note:

After importing the picture, you can fine-tune the contrast and brightness of the picture to make the picture clearer, these parameters will affect the engraving effect.

2. The parameters are for B4 20W with marking area 110x110mm on painted metal.

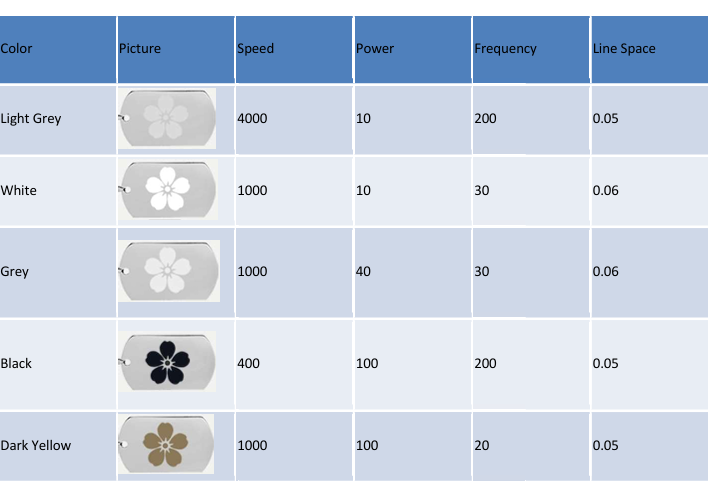

Parameters for marking different colors

Note:

 *The following parameters are just suggestions for 20w machine engraving stainless steel. The results may vary to the size of the file, materials, focal length etc.

*The parameters may need to be changed for machine of different power or on other materials.

For more instructions and specifications, View Full ComMarker B4 MOPA Manual↗
