Operating B4 MOPA with Lightburn

For MacOS

Note:

It is not compatible with our machine if your Lightburn version is lower than V1.3.01, please download a new version and reinstall.

And Lightburn is a paid software with 1 month free trial, you need to buy the licence key for Galvo version.

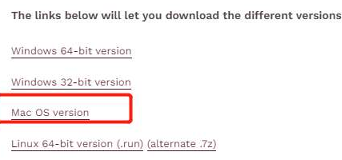

1. Download the software from the website:

 https://lightburnsoftware.com/pages/trial-version-try-before-you-buy

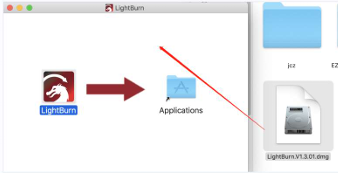

2.Find downloaded file Lightburn V1.3.01, and drag Lightburn icon to the Applications folder

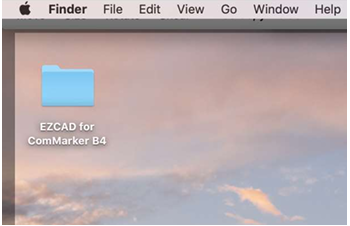

3.Copy the folder "EZCAD for ComMarker B4" from the USB to the desktop

4. A device window will pop out if the software is open the first time, click “Create Manually”, Select “JCZFiber”

Note:

Make sure the machine is on and connected via USB

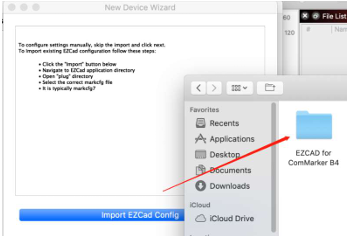

5. Import EZCAD Config and select the folder

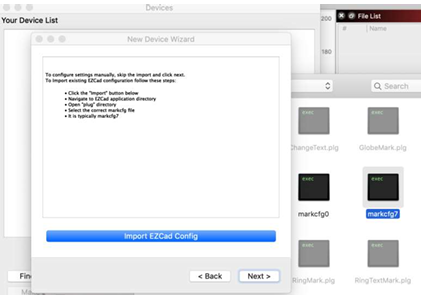

6.Select folder "110mm" (or 200mm according to your lens)→" Plug", and choose "markcfg7" and click "next"

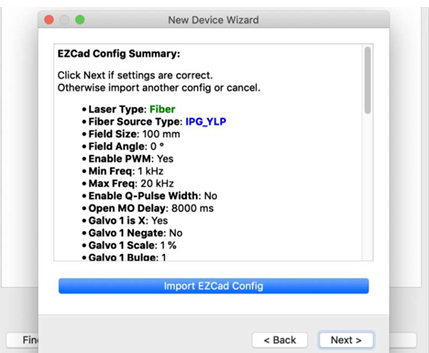

7.You can see the following window if everything goes right, and click "next"

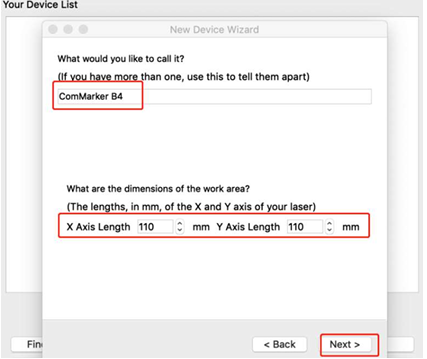

8. Change the name if necessary, and input the right X and Y Axis Length according to the lens. Click "next"

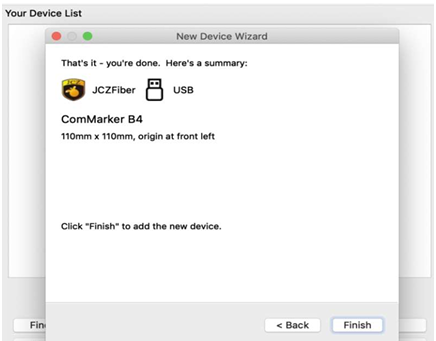

9. Click “finish” and it will in the device list

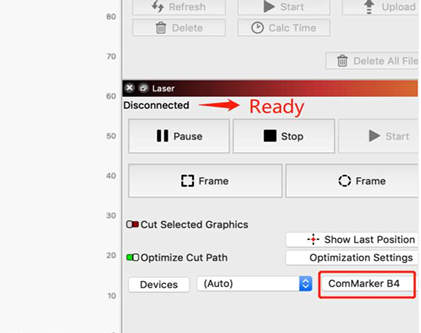

10. The status will change into “Ready” when the machine is on and connected via USB

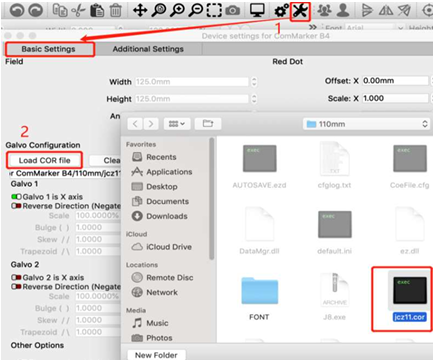

11. Go to "Basic Settings" from "Device setting" button, click "Load COR file", Select "EZCAD for ComMarker B4"→"110mm", Choose file "JCZ11.cor", Click "OK"

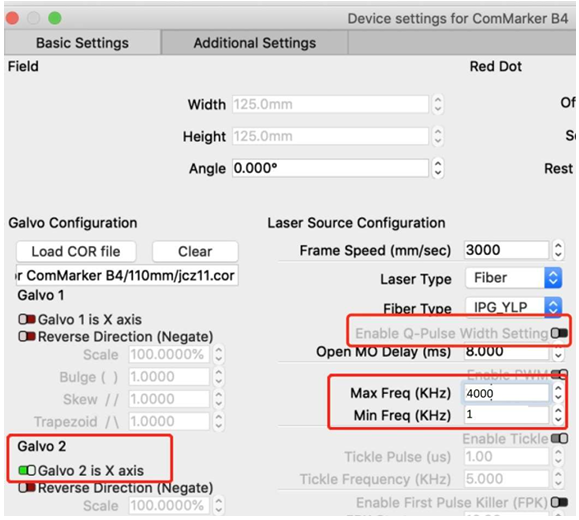

12. Change the setting of Freq "Min 1", "Max 4000". Switch on "Galvo 2".

Switch on the button "Enable Q-Pulse Width Setting" (Make sure the Fiber Type is "IPG_YLP" or "JPT")

For Window system

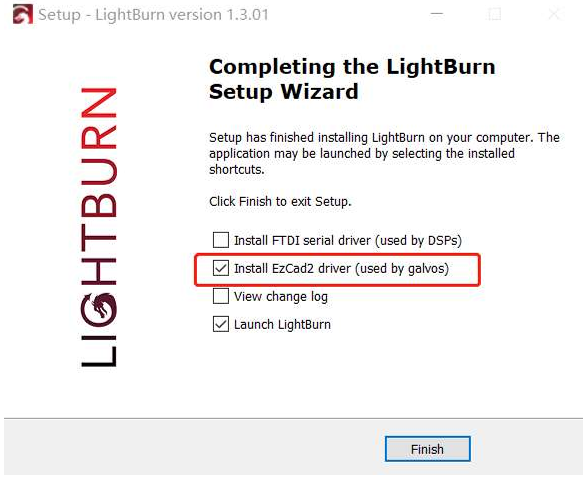

Refer to the operation on MacOS, please don't forget to install the driver when installing Lightburn software as the following picture shows:

For more instructions and specifications, View Full ComMarker B4 MOPA Manual↗
