Operating B6 with Ezcad

1. Install the driver

Note：

Please conduct the following operation before installing the driver

1) The machine is on;

2) Keep the emergency button not pressed;

3) Data cable with the computer is connected;

4)The TypeC data cable connecting the column to the back of the machine is attached

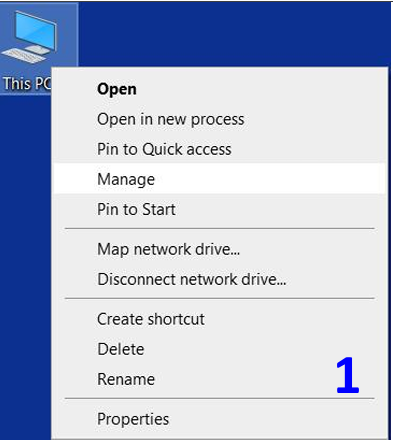

1.1 Right-click "this PC", click "Manage".

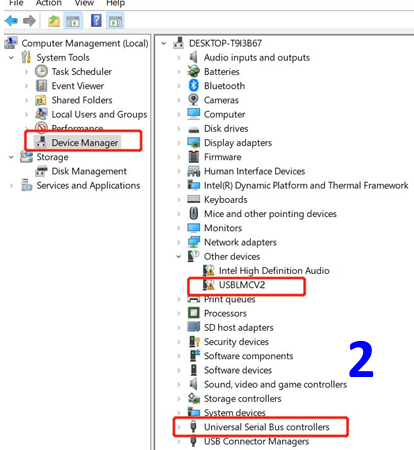

1.2 Click"Device Manager",find“USBLMCV2”,“USBLMCV4”or “Unknown Device”in“Other devices”or“Universal Serial Bus devices”

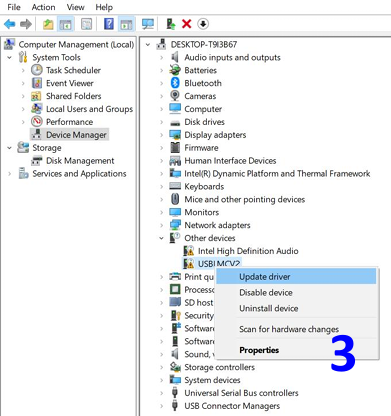

1.3 Right-click “USBLMCV2”, “USBLMCV4” or “Unknown Device”and"Updatedriver"

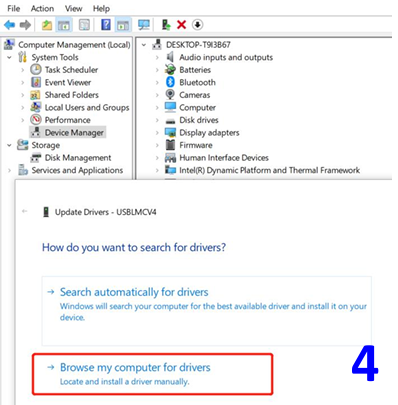

1.4 Select "Browse My Computer for Drivers".

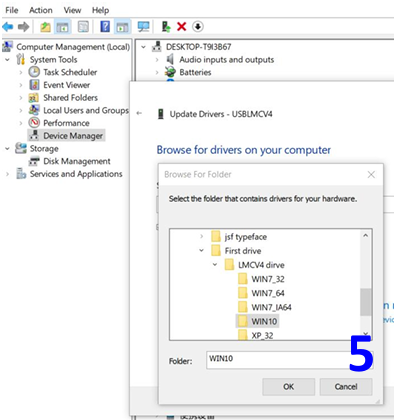

1.5.Find the corresponding file with window system in the USB drive, click OK

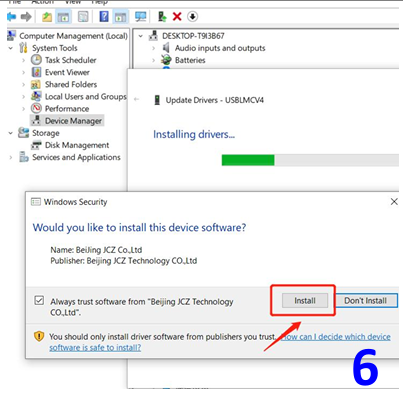

1.6 Click "Install".

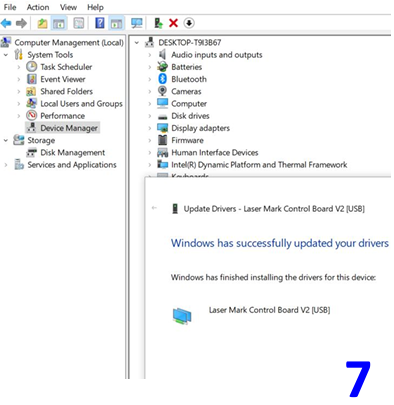

1.7 Click “finish” if it is successful.

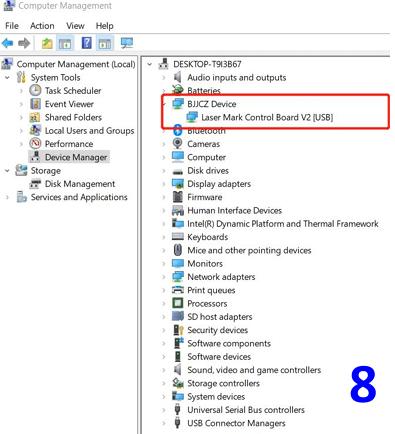

1.8 It will display "BJJCZ Device" in Device Manager.

Noted:

*It is recommended to copy and paste the files of the USB disk to the computer desktop or other computer disks.

*If the driver installation is unsuccessful, please refer to FÃQ

2. Open the software

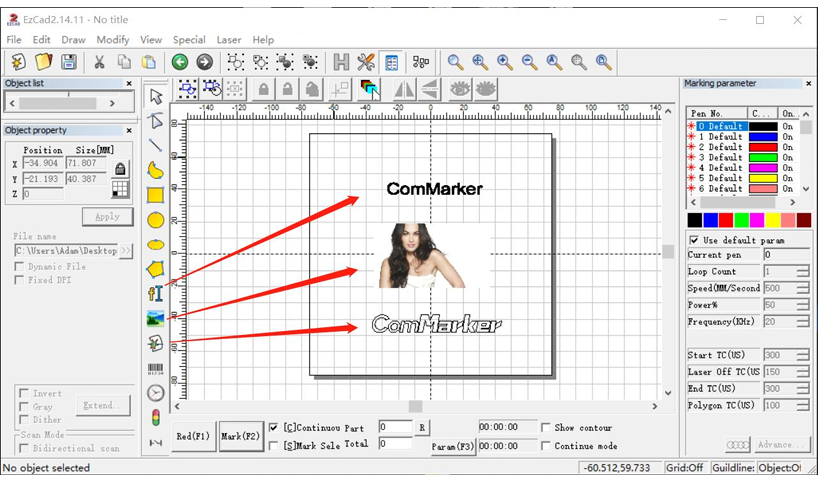

Open the USB folder, open the "EZCAD for ComMarker" folder, open the software “EZCAD2”. You can enter "text", import "picture" or "vector file" as shown in the figure below. It is recommended to select the text to test first.

3. Import the correction file

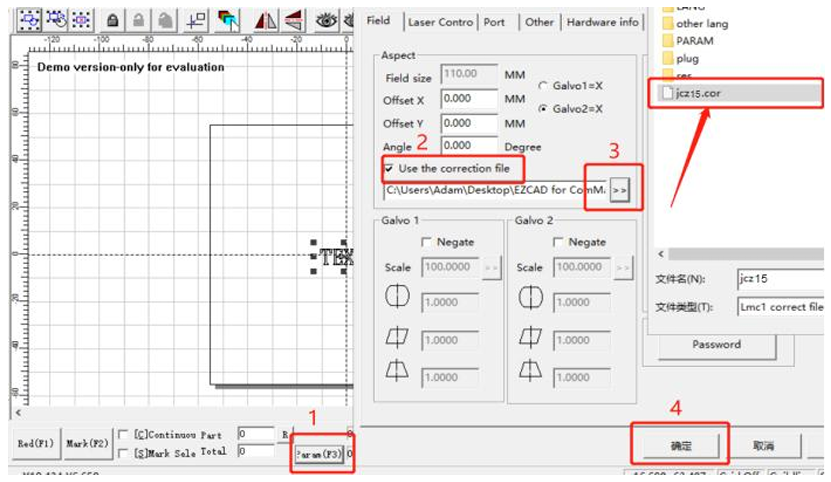

Select "Parameter (F3)", tick "Use Correct File", select the file ending in .cor in the USB flash drive (or have been copied to the computer disk), and click "OK (确认)".

4. Adjust the focus

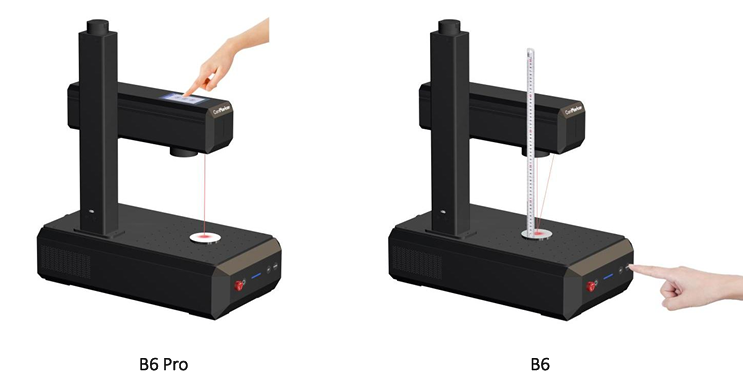

For B6 pro: press the “Auto” button to autofocus.

Note:

Please refer to next page “Auto Focus Setting” if it the focus is not right

The sensor is not at the center of the engraving area. Please place the material directly under the red dot before pressing the “Auto” button for accurate focusing. After auto-focusing, the material can be moved if necessary

Press up or down button to lift or lower the laser head until the two red light point overlap, this is the best focal point.

The measuring focal length of this machine is:

___________(70*70), ___________(110*110),

___________(150*150),___________(200*200),

___________(300*300)

the measuring distance is the length from the bottom line of the laser head to the surface of the material. This parameter is measured manually, and each device has different focal lengths due to changes in laser sources and field lenses.

Note:

Please refer to FAQ if the focal point does not match with the overlapping point

5. Marking test

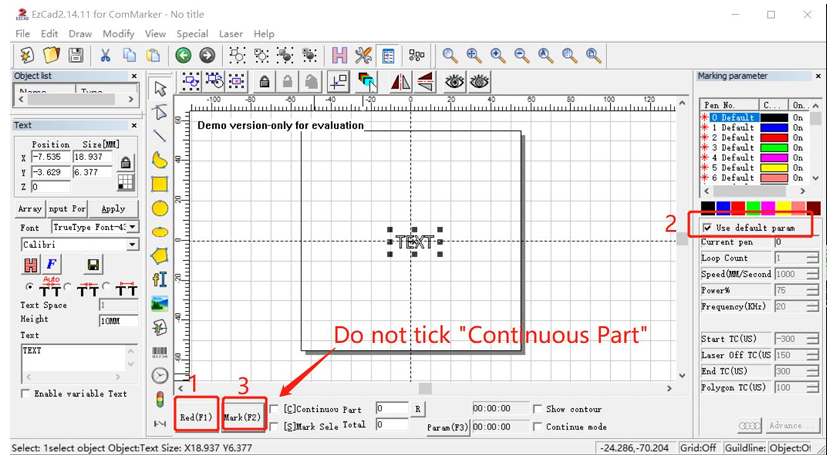

Place the test engraving material on the machine. Click "Red (F1)", the area shown by the red light is the marking area. Tick "Default Parameters". Click "Mark (F2)" to start marking.
